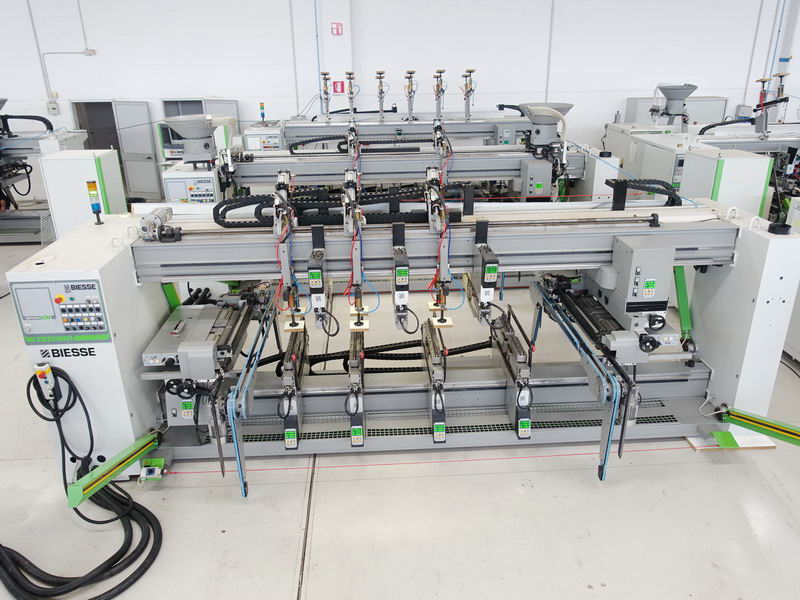

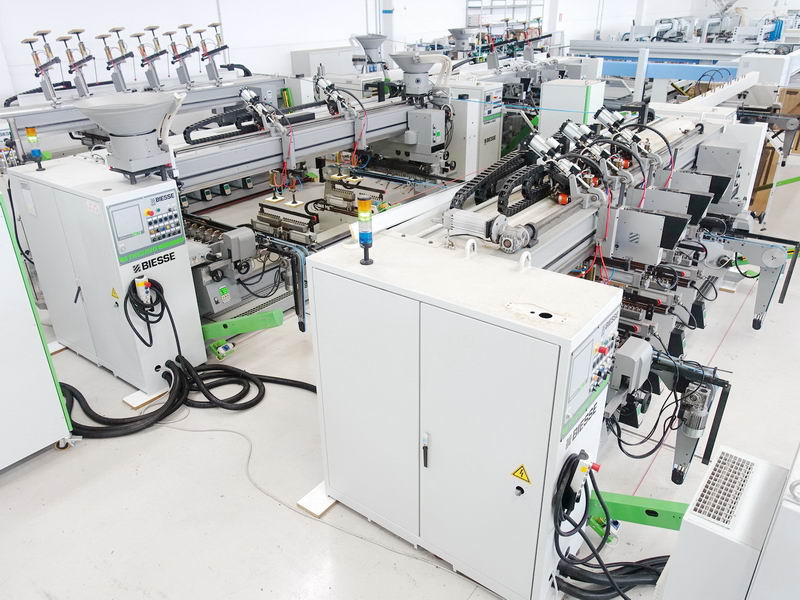

VZ0251 BORING MACHINE (AUTOMATIC BORING LINE) BIESSE Techno FDT CN + Techno SDT CN

Code: VZ0251 Type: BORING MACHINE (AUTOMATIC BORING LINE) Brand: BIESSE Model: Techno FDT CN + Techno SDT CN

Description

Automatic ELECTRONIC Drilling and Dowels inserting LINE, CNC controlled:

VZ0250B) THROUGH-FEED MULTI-BORER “BIESSE” Techno FDT with CNC
– No. 2 through-feed motorised belts, feeding speed up to 75 m/min
– No. 2 horizontal units (each with 2 drilling heads at 11 spindles each, HP 1.8 each),
– No. 4 bottom vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 ea)
– No. 3 top vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 3 top pressing devices
– No. 2 endless screws to evacuate the wastes.
With CNC NC 500 to control, manage and run the 2 machines of this line

VZ0250C) THROUGH-FEED MULTI-BORER & DOWELS INSERTER “BIESSE” Techno SDT with CNC
– No. 2 through-feed motorised belts, feeding speed up to 75 m/min
– No. 2 horizontal units (each with 6 inserting nozzles, such as Glue injectors and dowel drivers)
– No. 2 bottom units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 2 Top pressing devices
– No. 2 endless screws to evacuate the wastes.
