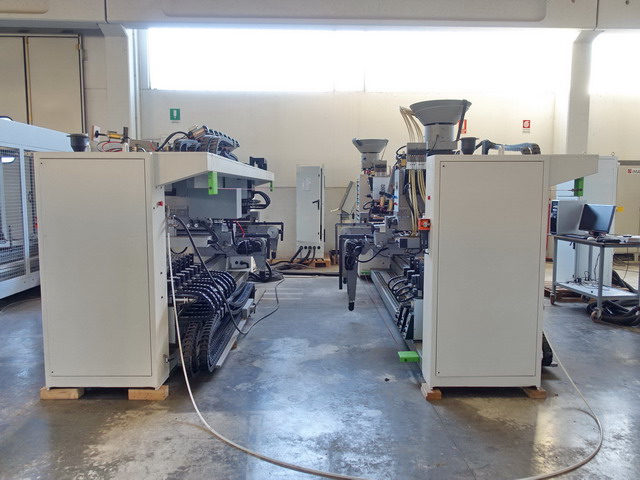

S07087 BORING MACHINE (AUTOMATIC BORING LINE) BIESSE Techno Logic CN + Techno Infor Logic CN

Code: S07087 Type: BORING MACHINE (AUTOMATIC BORING LINE) Brand: BIESSE Model: Techno Logic CN + Techno Infor Logic CN

Description

Automatic ELECTRONIC Drilling LINE with Dowels Inserting, CNC controlled, composed by:

S07087A) THROUGH-FEED MULTI-BORER “BIESSE” Techno Logic with C.N.
– N° 2 through-feed motorized conveyoring belts, with adjustable speed 55 m/min
– N° 2 horizontal units (each one with 1 drilling blocks at 20 spindles each, HP 1.5 x 1)
– N° 8 vertical bottom units (each one with 2 drilling blocks with various spindles each, HP 1,8 x 2)
– N° 4 vertical top units (each one with 2 drilling blocks with various spindles each, HP 1,8 x 2)
– N° 8 top pneumatic pressure units / N° 2 endless screws to evacuate the wastes. Power 51,9

S07087B) Through-Feed MULTI-BORER & DOWELS INSERTER “BIESSE” Techno Infor Logic C.N.
– N° 2 through-feed motorized conveyoring belts, with adjustable speed 55 m/min.
– N° 2 horizontal units (each with 6 inseritng nozzles, such as Glue injectors and dowel drivers)
– N° 3 vertical bottom units (each one with 2 drilling blocks with various spindles each, HP 1,8 x 2)
– N° 1 vertical top unit (with 2 drilling blocks with various spindles each, HP 1,8 x 2)
– N° 2 top pneumatic pressure units / – N° 2 endless screws to evacuate the wastes. Power 23,6

CNC Mod. NP 886 (with software Tooling System + WoodMaster) unique for the 2 machines, it controls the set-up and run of the automatic working cycles (estimated) :
– it controls the movement (X axe) of the horizontal movable unit
– it controls the movement (X axe) of all the vertical units
– it controls the movement (Y1 and Y2 axes) of the drilling heads (vertical units)
– it controls the movement (Y axe) of the stops
– it controls the movement (X axe) of the pressure devices
– it controls the movement (X axe) of the transport belts
