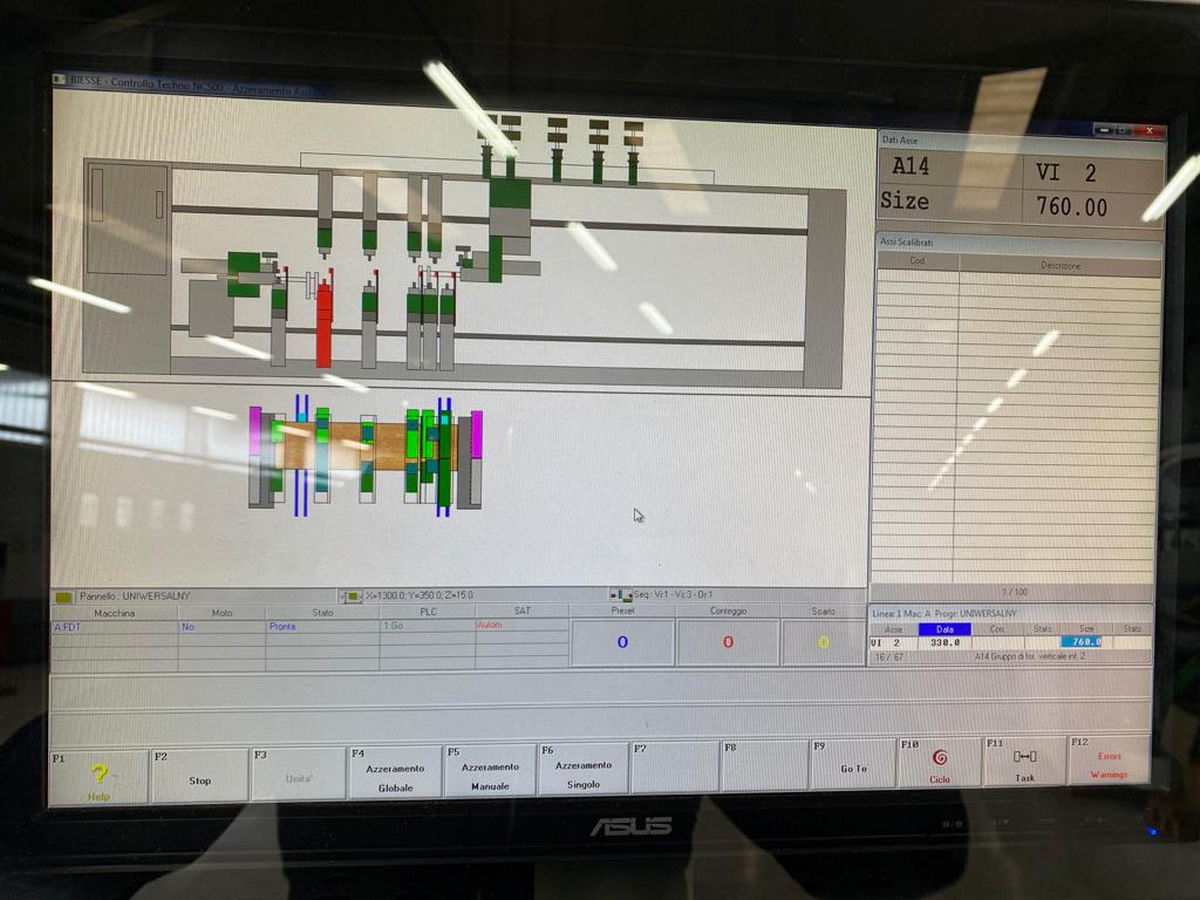

Numerical Control Type NC 400 (Software)
Through-feed motorized conveyoring belts (No.) 2

No. 2 Horizontal units/supports
Drilling heads for each horizontal unit (N°) 2
Splindles for each horizontal drilling head (N°) 11
Max. working width (mm) 3200 – Min. working width (mm) 205 (ca.)

No. 6 Bottom vertical units/supports
Drilling heads/blocks for each bottom vertical unit (N°) 2

No. 4 Top vertical units/supports
Drilling heads/block for each top vertical unit (N°) 2

Vertical top pressure clamps (N°) 5
Motorized endless screws to evacuate wastes/chips (N°) 2
Digital quota (axes) display
Total installed power (Kw) 48

The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the stops
