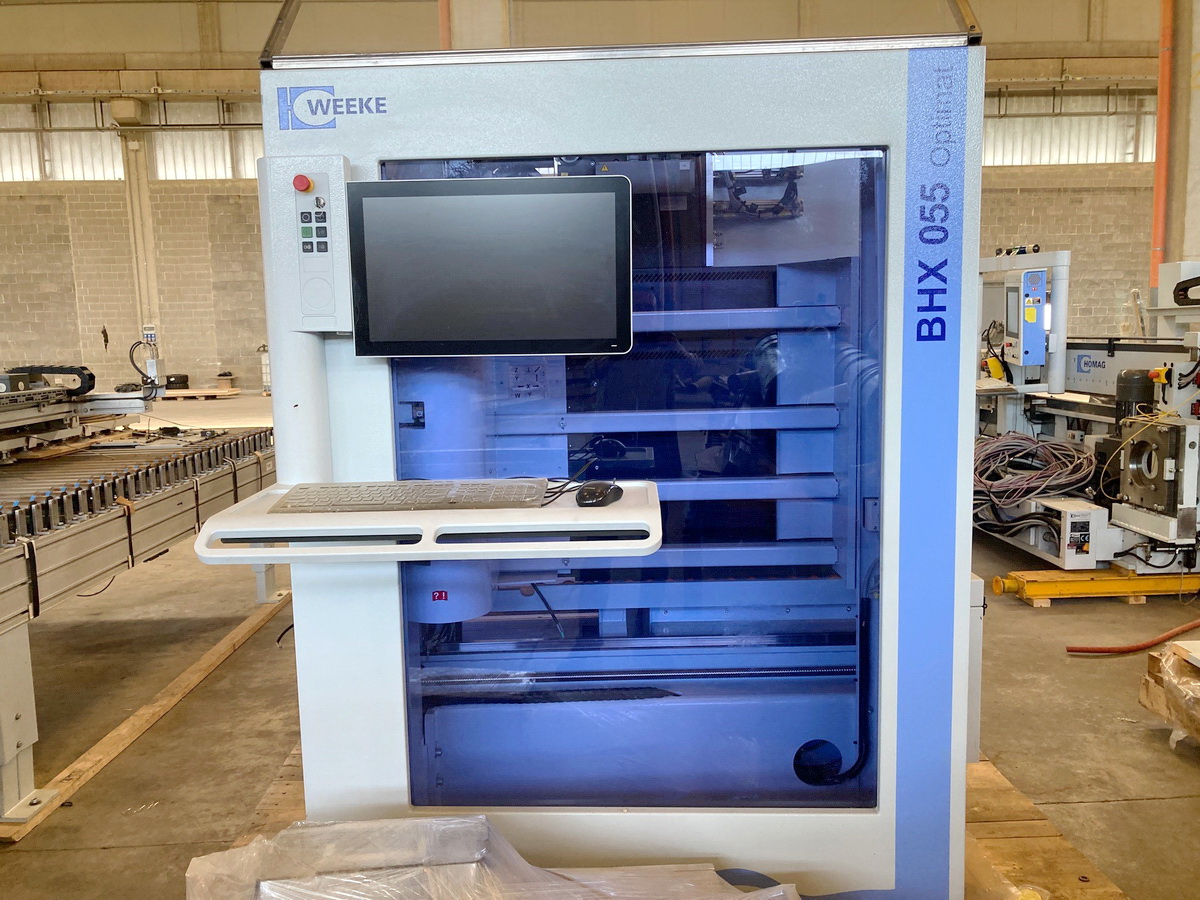

X04005 C.N.C. WORKING CENTER WEEKE ( ) BHX 055

Code: X04005 Type: C.N.C. WORKING CENTER Brand: WEEKE (HOMAG Group) Model: BHX 055

Description

C.N.C. WORKING CENTER 3 axes (X-Y-Z)
Movable panel (workpiece), movable working head
Vertical position of the panel (workpiece)

Numerical Control POWERCONTROL + POWERTOUCH
Software woodWOP

Safety cabin (enclosure) of the working head
No. 1 Workpieces fixing clamps (for the panels introduction in the working area
Panels feeding by motorized chain/track

Minimum workpieces dimensions (X – Y – Z) mm 200 x 70 x 12
Maximum workpieces dimensions (X – Y – Z) mm 3050 x 850 x 60
Maximum stroke of the axis (X – Y – Z) mm 1255 – 1250 – 87
Total installed power (Kw) 11,5 (ca.)

WORKING GROUPS:
No. 1 Drilling head (power Kw 2.3) with vertical spindles
– No. 13 Independent vertical boring spindles
– No. 6 Independent horizontal boring spindles (4 in X + 2 in Y)

No. 1 Circular Grooving Saw (on X axis) dia. (mm) 100
No. 1 Vertical electro-spindle (No.) 1 x ETP 25 (power Kw 5)

Automatic Tools Changing System – Tools storage plate (No. 4 folds-positions)
