Z10055 AUTOMATIC BORING MACHINE BIESSE Techno FDT

Code: Z10055 Type: AUTOMATIC BORING MACHINE Brand: BIESSE Model: Techno FDT

Description

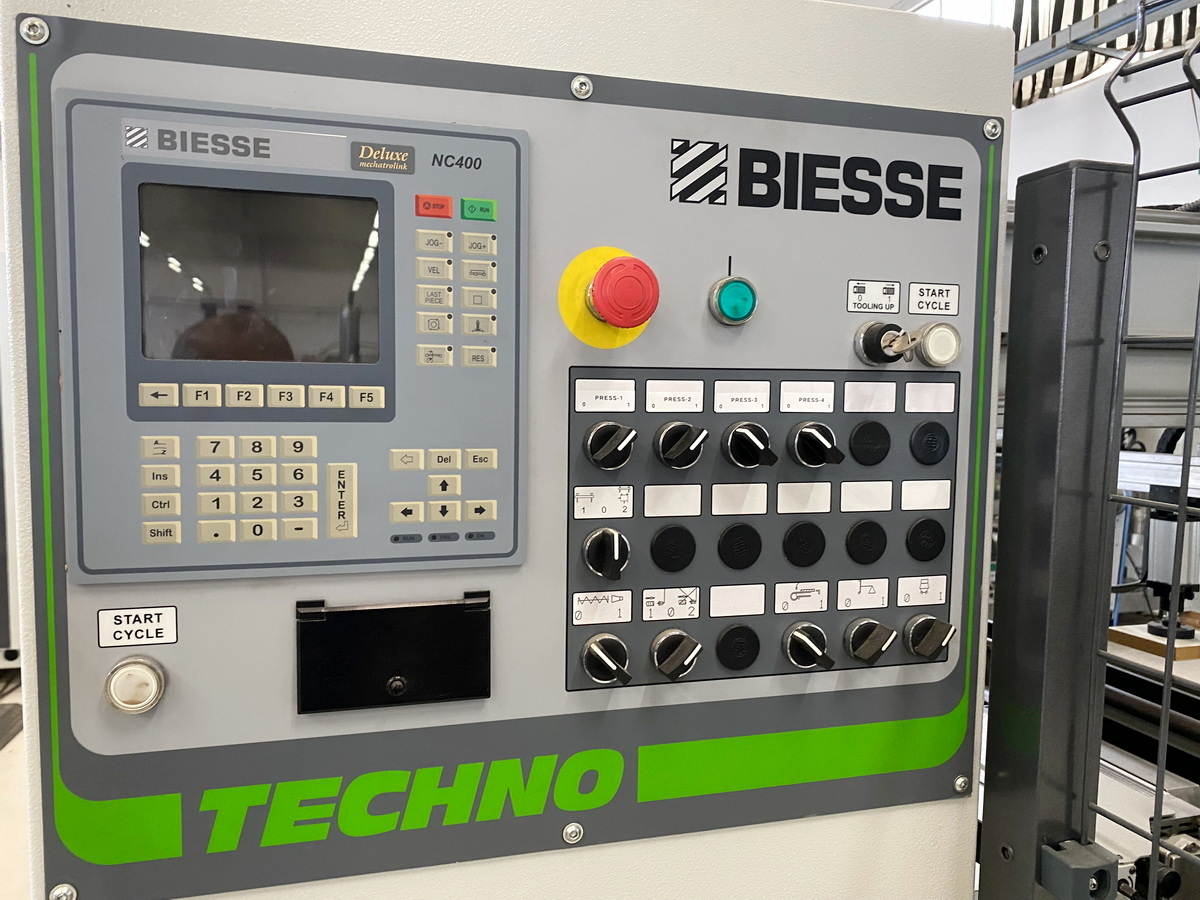

Numerical Control Type NC 400
Through-feed motorized conveyoring belts (No.) 2
Feeding speed (m/min) 35 – 80 (ca.)

Horizontal units/supports (No.) 2
Drilling heads for each horizontal unit (N°) 2
Splindles for each horizontal drilling head (N°) 11
Max. working width (mm) 3200
Min. working width (mm) 205

Bottom vertical units/supports (No.) 5
Drilling heads/blocks for each bottom vertical unit (N°) 2

Top vertical units/supports (No.) 2
Drilling heads/blocks for each bottom vertical unit (N°) 2

Vertical top pressure clamps (No.) 4
Motorized endless screws to evacuate wastes/chips (N°) 2
Digital quota (axes) display
Total installed power (Kw) 27

The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the reference stops
