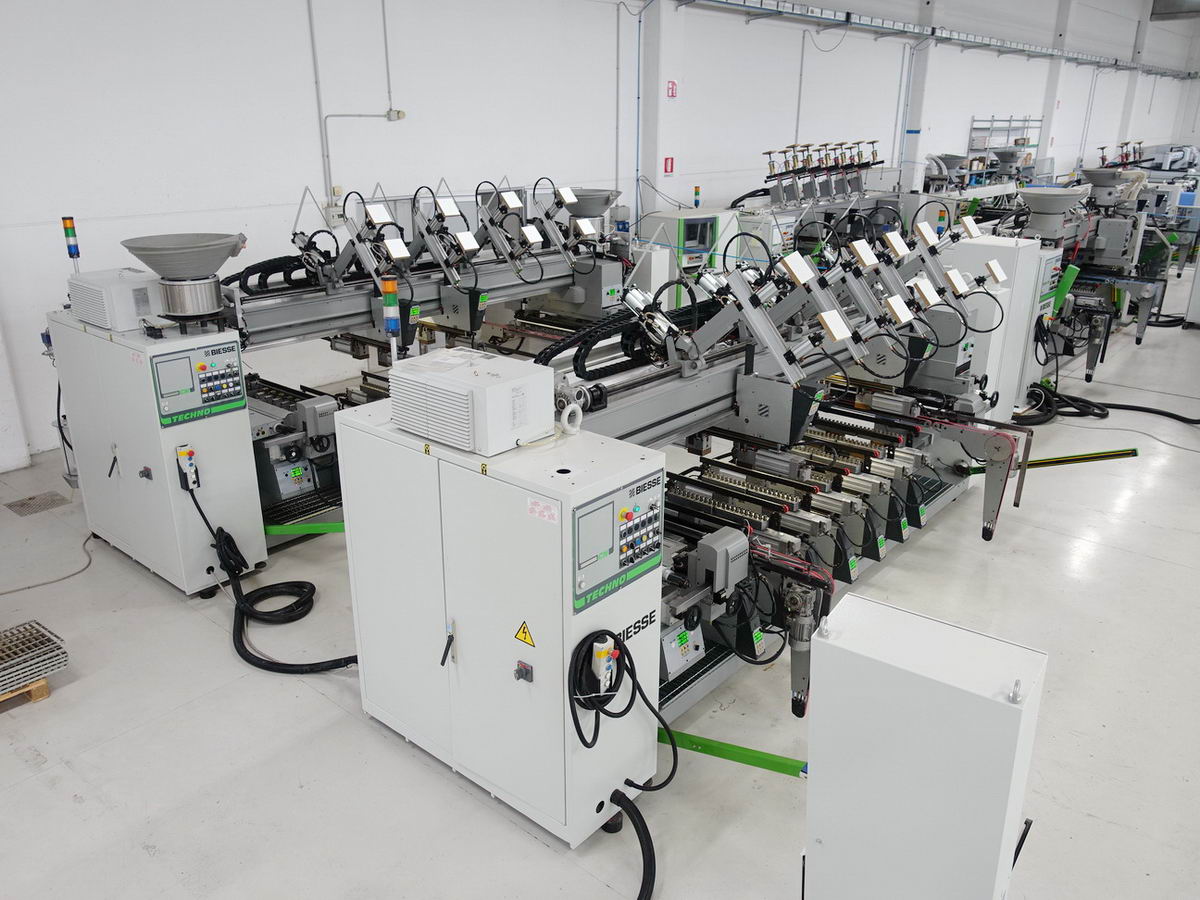

Through-feed Drilling and Dowels inserting ELECTRONIC LINE (2 machines), CNC controlled, feeding speed up to 75 m/min. Composed by:

VZ0350F) THROUGH-FEED MULTI-BORER “BIESSE” Techno FDT CN
– No. 2 horizontal units (each with 2 drilling heads at 11 spindles each, HP 1.8 each),
– No. 7 bottom vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 ea)
– No. 2 top vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 5 top pressing devices +No. 2 endless screws to evacuate the wastes.

VZ0350G) THROUGH-FEED MULTI-BORER & DOWELS INSERTER “BIESSE” Techno SDT CN
– No. 2 horizontal units (each with 5 inserting nozzles, such as Glue injectors and dowel drivers)
– No. 4 bottom units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 2 top vertical units (each with 2 turnable drilling heads at various spindles, HP 1.8 each)
– No. 3 Top pressing devices + No. 2 endless screws to evacuate the wastes.

With CNC NC 500 (software Tooling System + Woodmaster) to control, program, manage and run the 2 machines of this line:
The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the vertical movement (Hv) of the 2 horizontal units
The CNC controls the movement (X axe) of all the vertical units
The CNC controls the movement (Y1 and Y2 axes) of the boring heads
The CNC controls the movement (Y axe) of the stops
The CNC controls the movement (X axe) of the pressure clamps
The CNC controls the movement (X axe) of the conveyor belts
