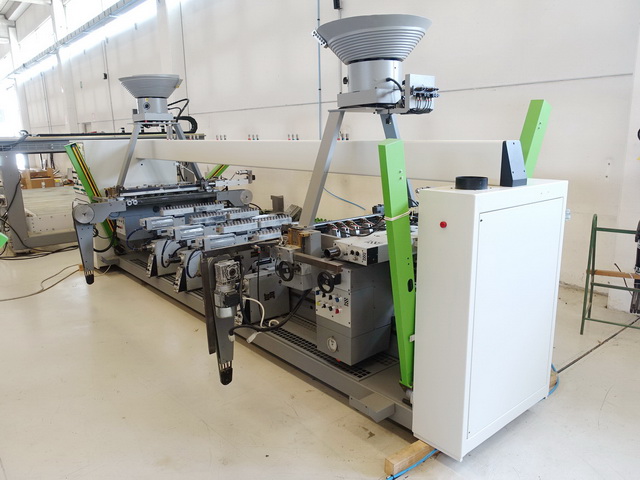

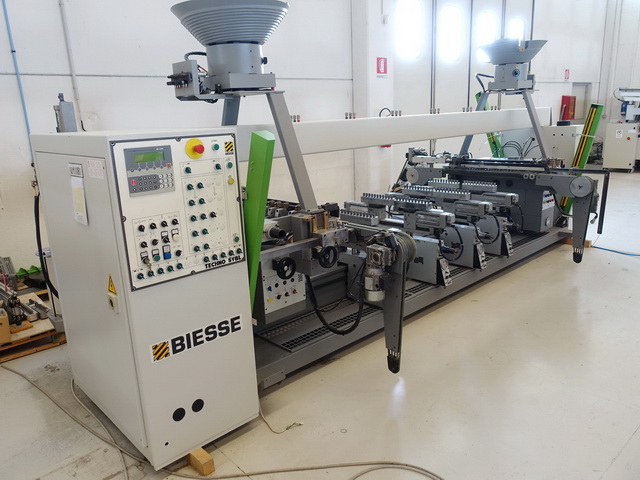

Double-side working machine, which can be placed in line after a through-feed Multi Borer for the automatic processing cycle of boring and dowels inserting

Electronic Programmer RT 486
Through-feed motorized conveyoring belts (No.) 2

Horizontal units/supports (No.) 2
Dowels inserting nozzles (and Glue Injectors) No. 5 Left-side + No. 5 Right-side

Max. working width (mm) 3200
Min. working width (mm) 205 (ca.)

Bottom vertical units/supports (N°) 4
Drilling heads/blocks for each bottom vertical unit (No. 2 x HP 1,8)

Vertical top pressure clamps (N°) 2
No. 2 Motorized endless screws to evacuate wastes/chips
Total installed power (Kw) 11,5

The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the stops
