Description

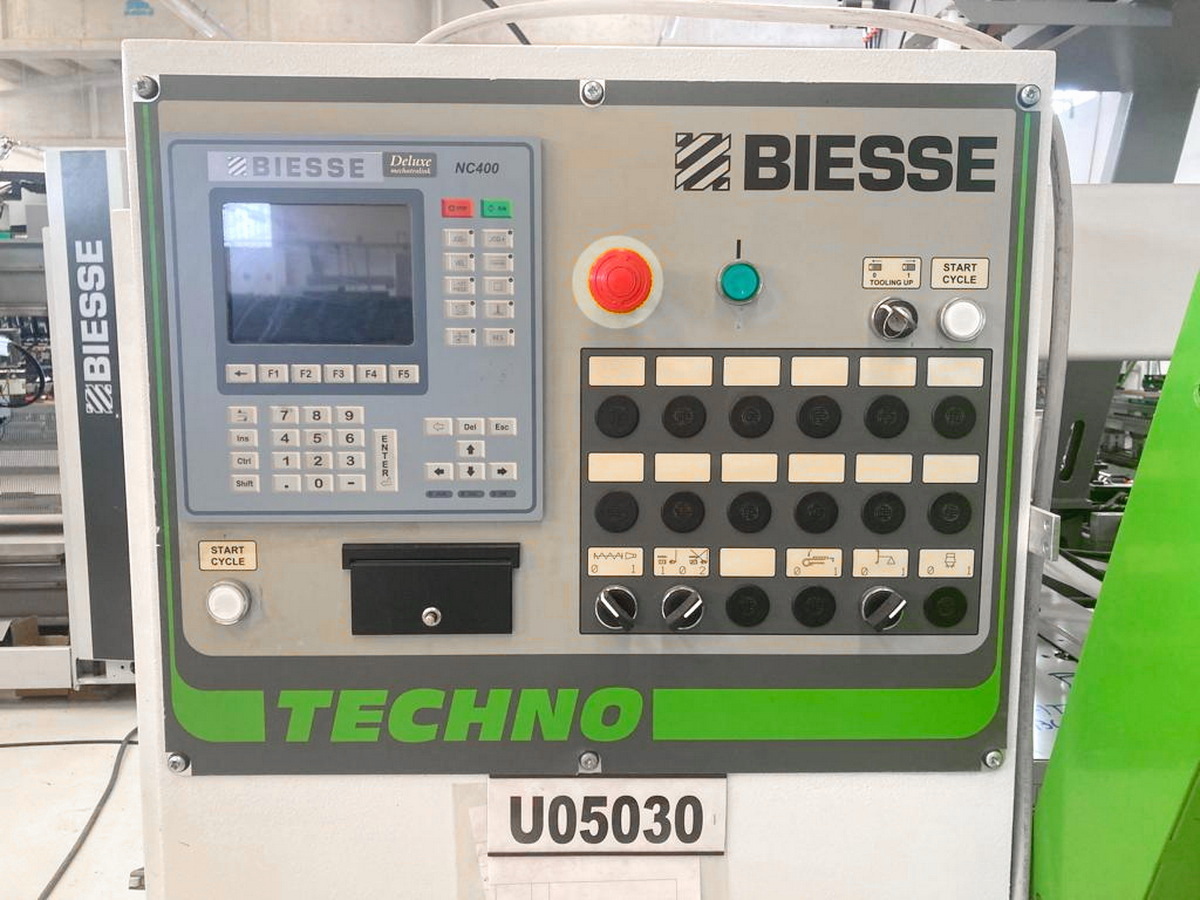

Electronic Programmer NC 400
Software Biesse
Through-feed motorized conveyoring belts (No.) 2
Horizontal units/supports (No.) 2
Dowels inserting nozzles (and Glue Injectors) N. 5+5
Max. working width (mm) 3200
Min. working width (mm) 235
Bottom vertical units/supports (N°) 2 (OPTIONAL: N° 6)
Drilling heads/blocks for each bottom vertical unit (N°) 2 x HP 1,8
Vertical top pressure clamps (N°) 2
Motorized endless screws to evacuate wastes/chips (N°) 2
The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the stops
