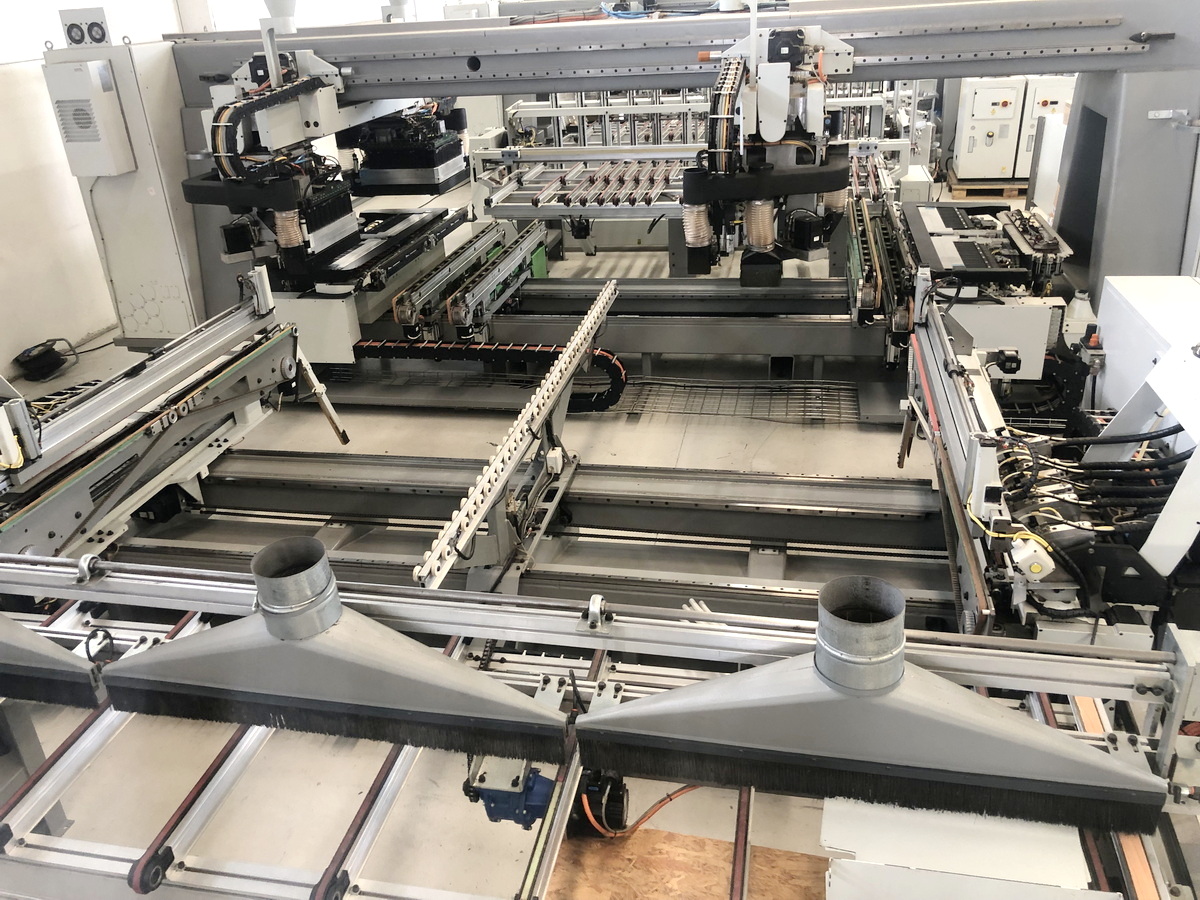

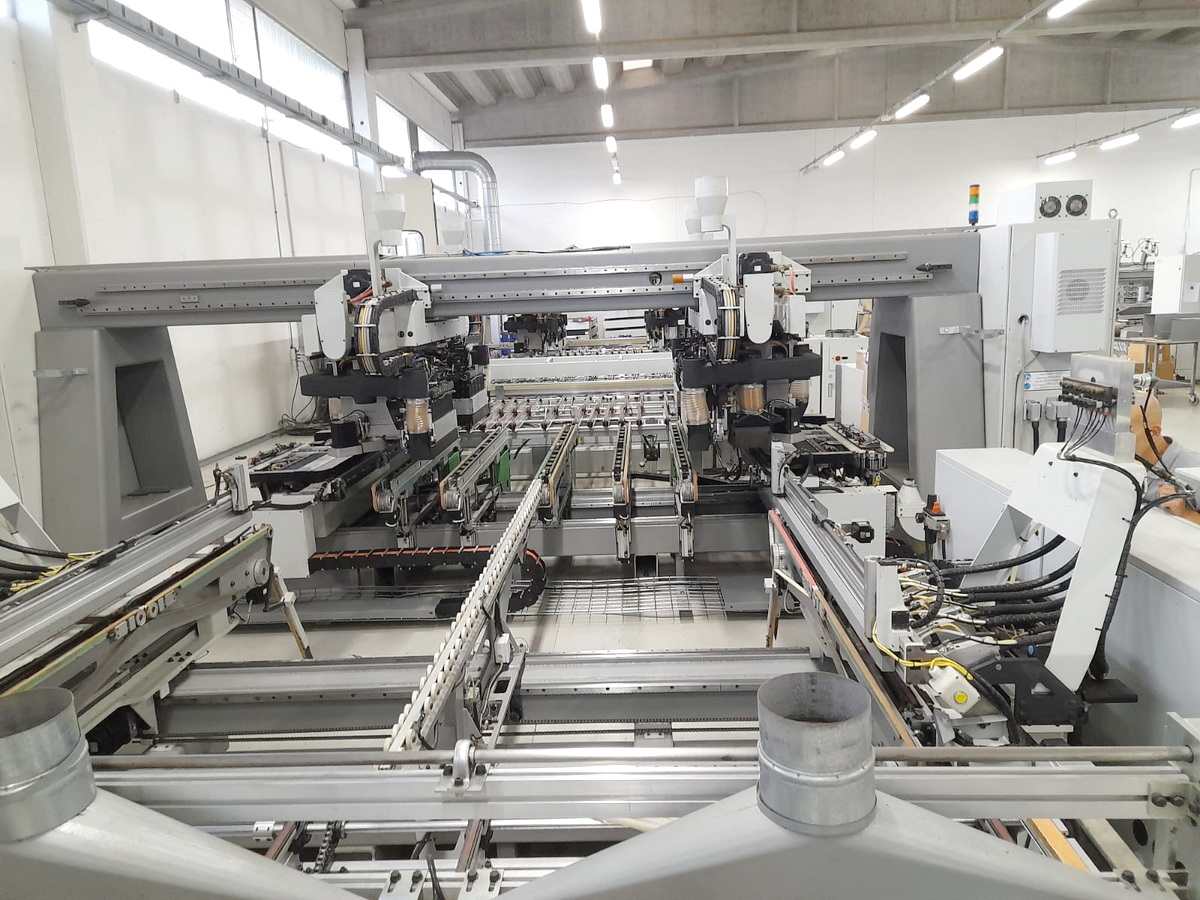

JZ1030F INSERTING MACHINE (for Dowels) BIESSE FTT 800.2D

Code: JZ1030F Type: INSERTING MACHINE (for Dowels) Brand: BIESSE Model: FTT 800.2D

Description

Machine belonging to the line (SOFIT code: JZ1030)

Movable panel (workpiece), movable working head
Horizontal position of the panel (workpiece)
Panels (workpieces) feeding by motorized belts No. 2
Feeding speed (m/min)

Minimum workpieces dimensions (X – Y – Z) mm 240 x 140 x 12
Maximum workpieces dimensions (X – Y – Z) mm 3100 x 1550 x 60
Two panels simultaneously processables (in Y axe) mm 800 + mm 800

Motorized carpet to evacuate chips and wastes

WORKING GROUPS (HORIZONTAL) – No. 2
Inserting nozzle and glue injectors (Right side) No. 6
Inserting nozzle and glue injectors (Left side) No, 6
Storage tanks for automatic feeding of the dowels (No.) 2
