Description

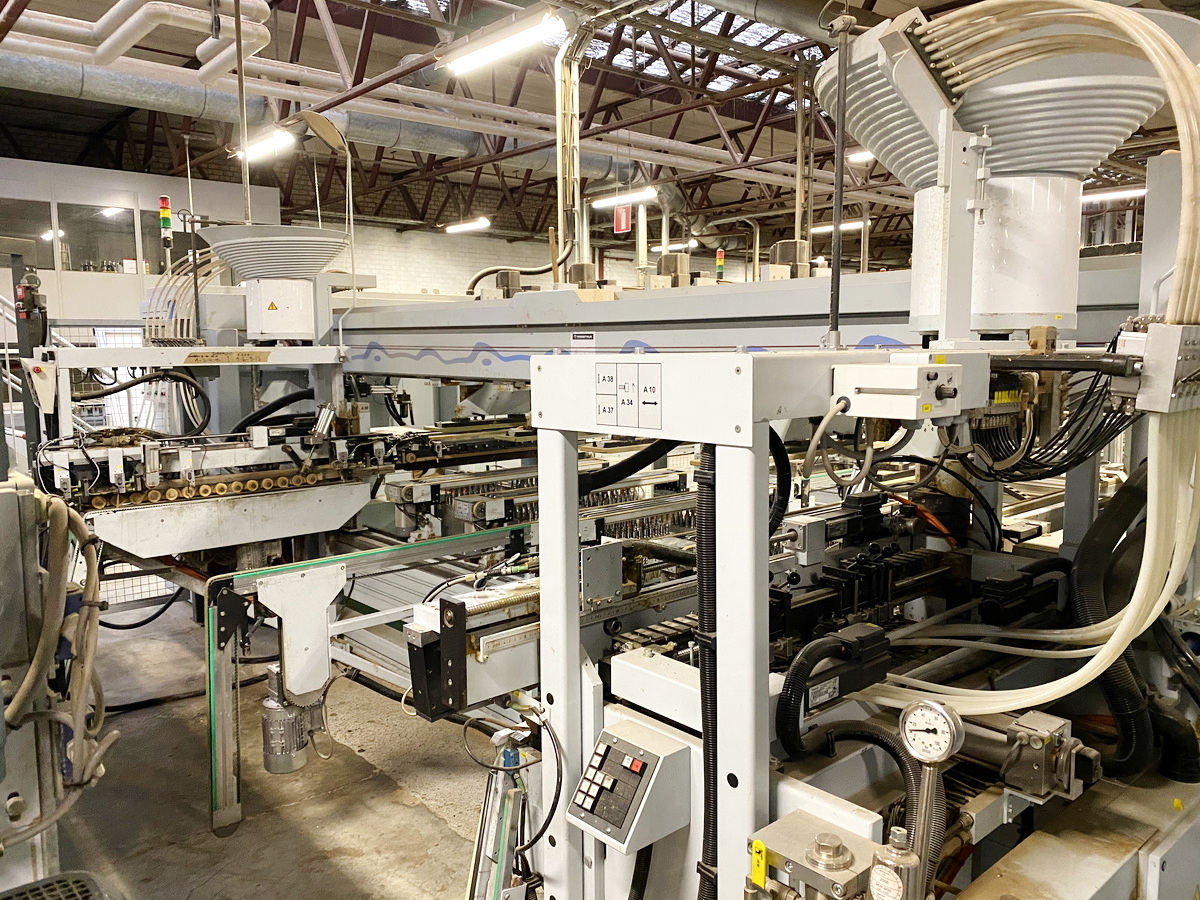

Gantry (Portal) machine, belonging to the line (SOFIT code YZ0900)
Movable panel (workpiece), movable working head (Horizontal position of the panel/workpiece)

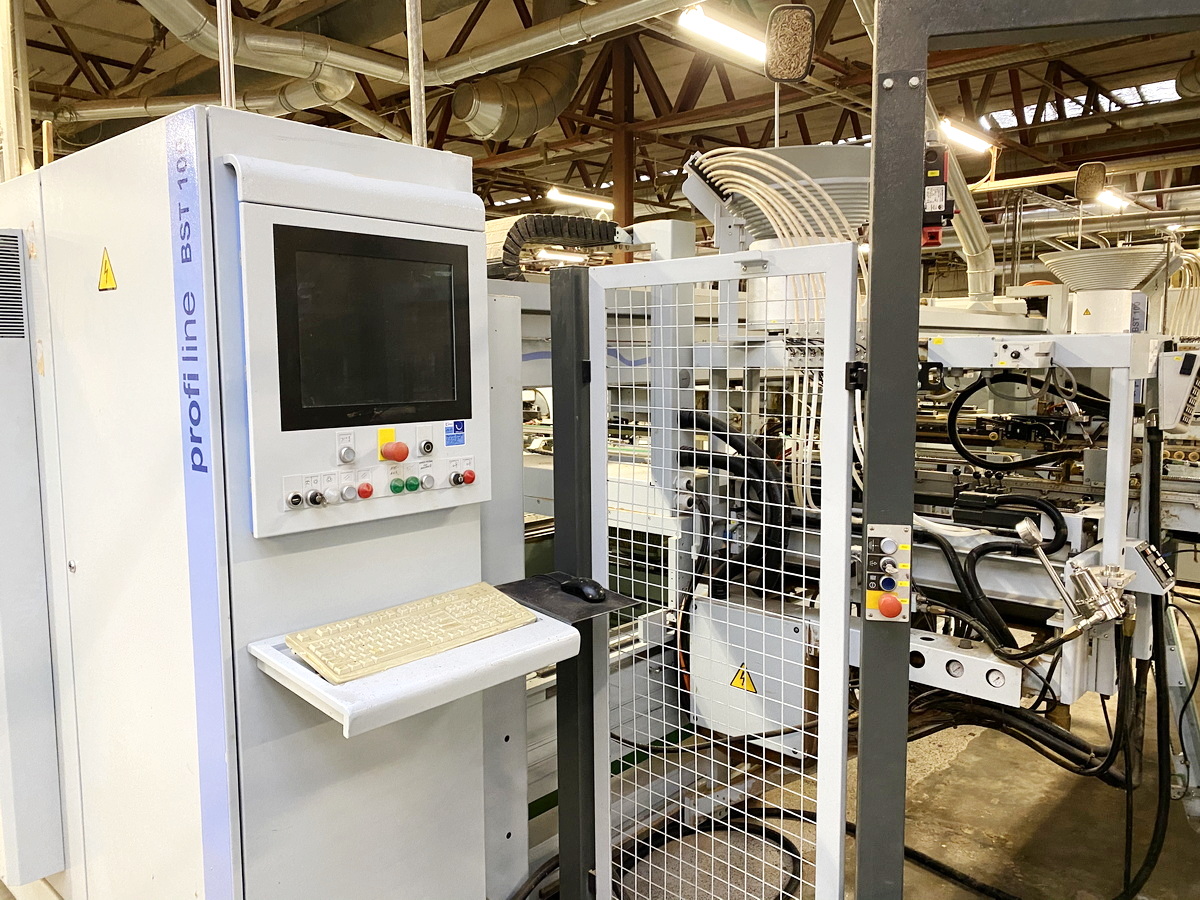

Numerical Control Power Control 85 T, Software MDE WoodWOP
Panels (workpieces) feeding by No. 3 motorized belts ( Feeding speed (m/min) max 120 ca. )
Minimum workpieces dimensions (X – Y – Z) mm 250 x 100 x 10 (12)
Maximum workpieces dimensions (X – Y – Z) mm 3000 x 1100 x 60
Motorized carpet to evacuate chips and wastes
Total installed power (Kw) 64
N° 5 WORKING GROUPS (BOTTOM)
Drilling heads with vertical spindles: No. 10 (10 x Kw 2,7)
Indipendent vertical drilling spindles: No. 40 x 10 heads (tot. No. 400 spindles)
N° 2 WORKING GROUPS (HORIZONTAL)
Inserting nozzle and glue injectors (Right side) No. 8
Inserting nozzle and glue injectors (Left side) No. 8
Storage tanks for automatic feeding of the dowels No. 2
