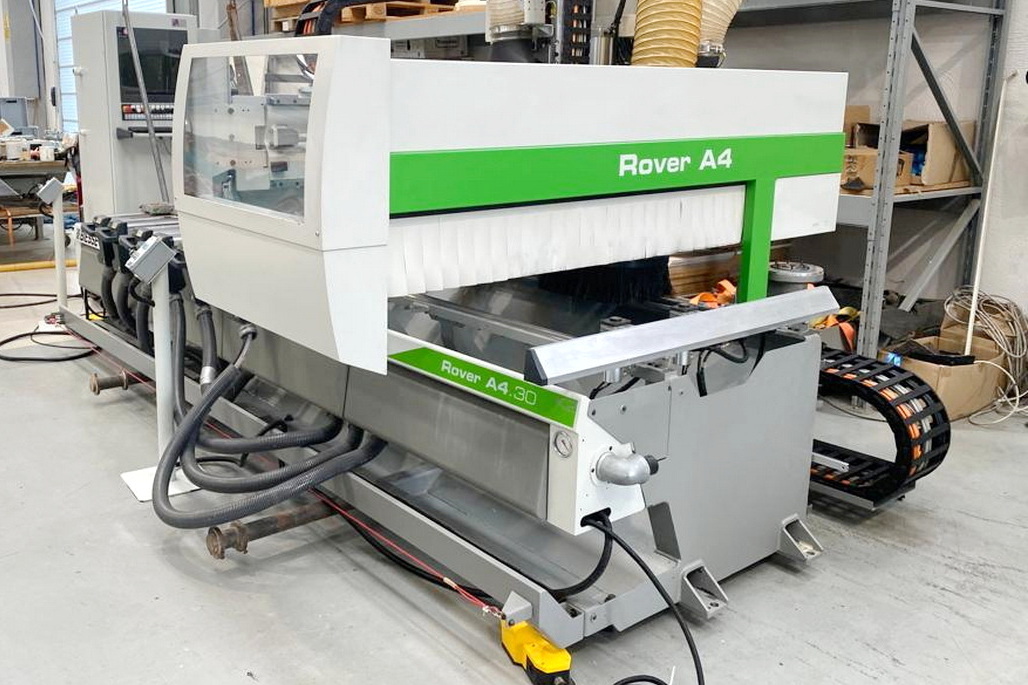

X09020 C.N.C. WORKING CENTER BIESSE Rover A 4.30

Code: X09020 Type: C.N.C. WORKING CENTER Brand: BIESSE Model: Rover A 4.30

Description

C.N.C. WORKING CENTER (POINT TO POINT) with 4 axis (X-Y-Z-C)

Working Axis 4
Goose-neck type
Numerical Control XP 600
Software BiesseWorks
Safety cabin (enclosure) of the working head
Front emergency carpets
Working table with pods and rails
Support rails (No.) 6

Automatic deplacement by CNC (Y axis) of the vacuum pods/cups
Automatic Tools Changing System
Tools storage plate (No. of folds-positions) 24

Max. useful working area (X – Y – Z) mm 3060 x 1320 (1460) x 150
Working areas (No.) 2
Vacuum pump (capacity m3/h) 250
Separate electric and command cabinet. Total installed power (Kw) 17

WORKING GROUPS (TOP):
Independent vertical boring spindles (No.) 7+7 (tot. 14)
Independent horizontal boring spindles (No.) 4+2 (tot. 6)
Circular Saw (tiltable 0°- 90°) diam. (mm)
Vertical electro-spindle (No.) 1. Vertical electro-spindle motor power (Kw) Kw 12
