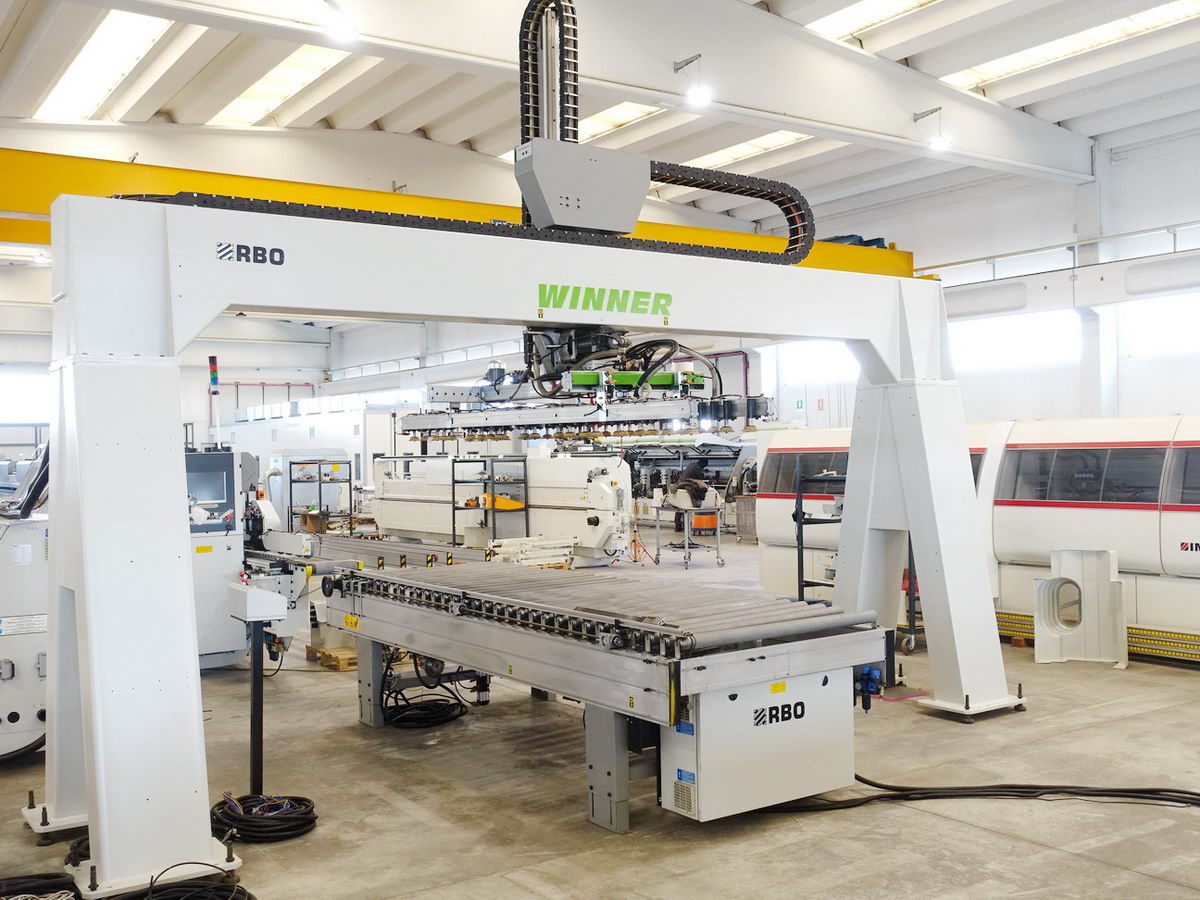

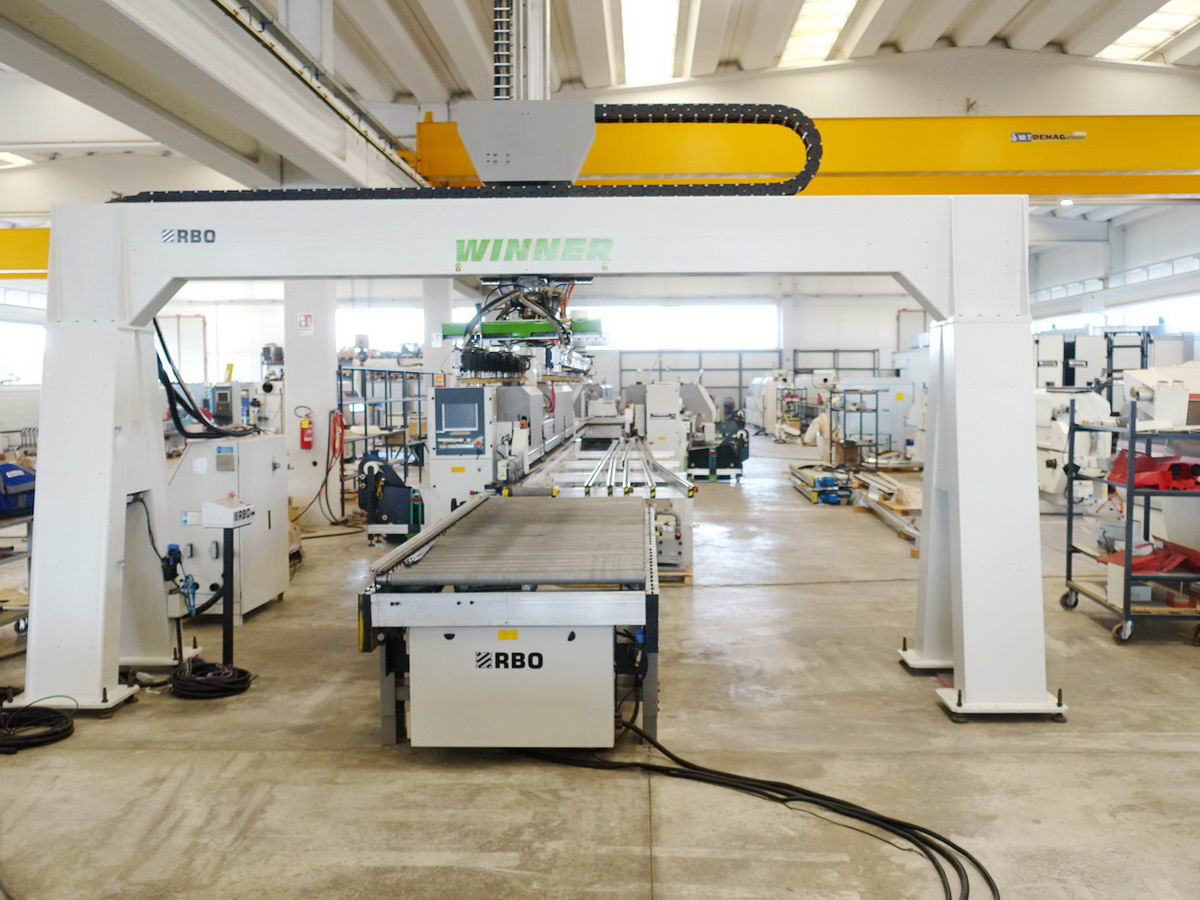

LOADER (BRIDGE-FRAME) WITH DOUBLE PICK-UP STATION

Vacuum system (with its pump)
No. 2 Vertical supporting columns of the top supporting beams
No. 2 Horizontal top supporting beams (where the carriage slide on)
No. 1 Motorized sliding carriage with horizontal metal arms
No. 2 Horizontal metal arms with vacuum cups, adjustables

No. 2 Out-side rollers ways (on gound) to in-feed pile of panels to the Loader
No. 1 Motorized rollers table (which receives panels from the Loader) mm 1400 x 5950

Separate electric and command panel
Electronic Programmer
Perimetral safety metal grids
Total installed motor power Kw

Working capacity (cycles/min) 16-20
Min/Max panels thickness mm 10-50
Min dimensions of the panels mm 250 x 320 (ca.)
Max dimensions of the panels mm 1200 x 3200
