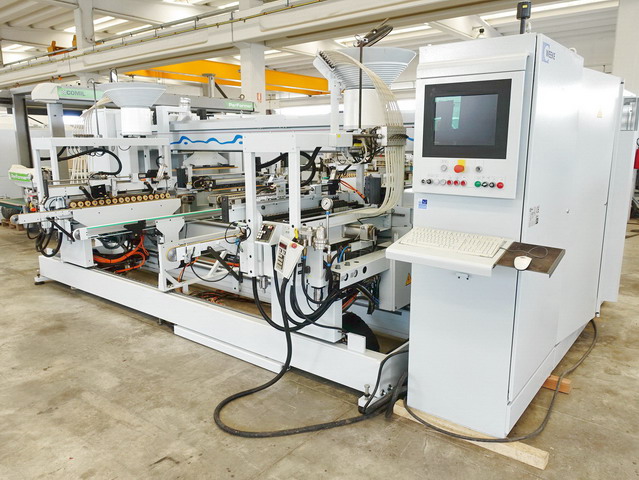

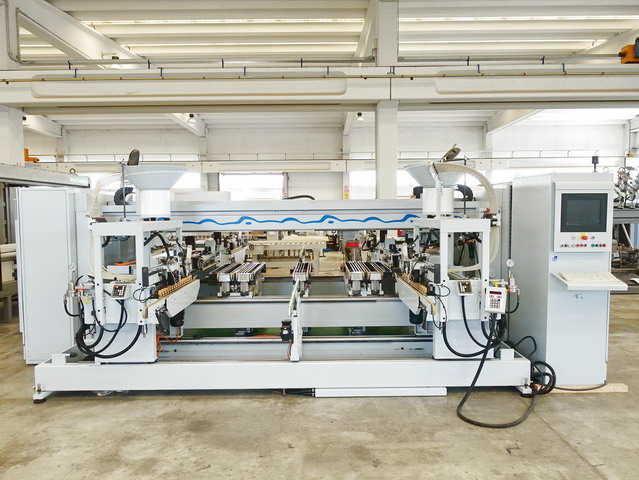

U06055 BORING MACHINE (AUTOMATIC BORING LINE) WEEKE ( ) BST 100 Profiline

Code: U06055 Type: BORING MACHINE (AUTOMATIC BORING LINE) Brand: WEEKE (HOMAG Group) Model: BST 100 Profiline

Description

Gantry (Portal) machine
Movable panel (workpiece), movable working head (Horizontal position of the panel/workpiece)
Numerical Control Power Control, Software WoodWOP

Panels (workpieces) feeding by No. 3 motorized belts
Minimum workpieces dimensions (X – Y – Z) mm 250 x 100 x 12
Maximum workpieces dimensions (X – Y – Z) mm 2500 x 1050 x 50
Motorized carpet to evacuate chips and wastes
Total installed power (Kw) 60

WORKING GROUPS (BOTTOM)
Drilling heads with vertical spindles: No. 6
Independent vertical drilling spindles: No. 40 x 6 heads (tot. No. 240 spindles)
Drilling head motor power: No. 6 x Kw 2,7

WORKING GROUPS (HORIZONTAL)
Drilling heads with horizontal spindles: No. 4 (4 x Kw 2,7)
Horizontal drilling spindles – Right side: No. 13 x 2 heads (tot. No. 26 spindles)
Horizontal drilling spindles – Left side: No. 13 x 2 heads (tot. No. 26 spindles)

Inserting nozzle and glue injectors (Right side): No. 8 (high-pressure)
Inserting nozzle and glue injectors (Left side): No, 8 (high-pressure)
Storage tanks for automatic feeding of the dowels: No. 2
