Description

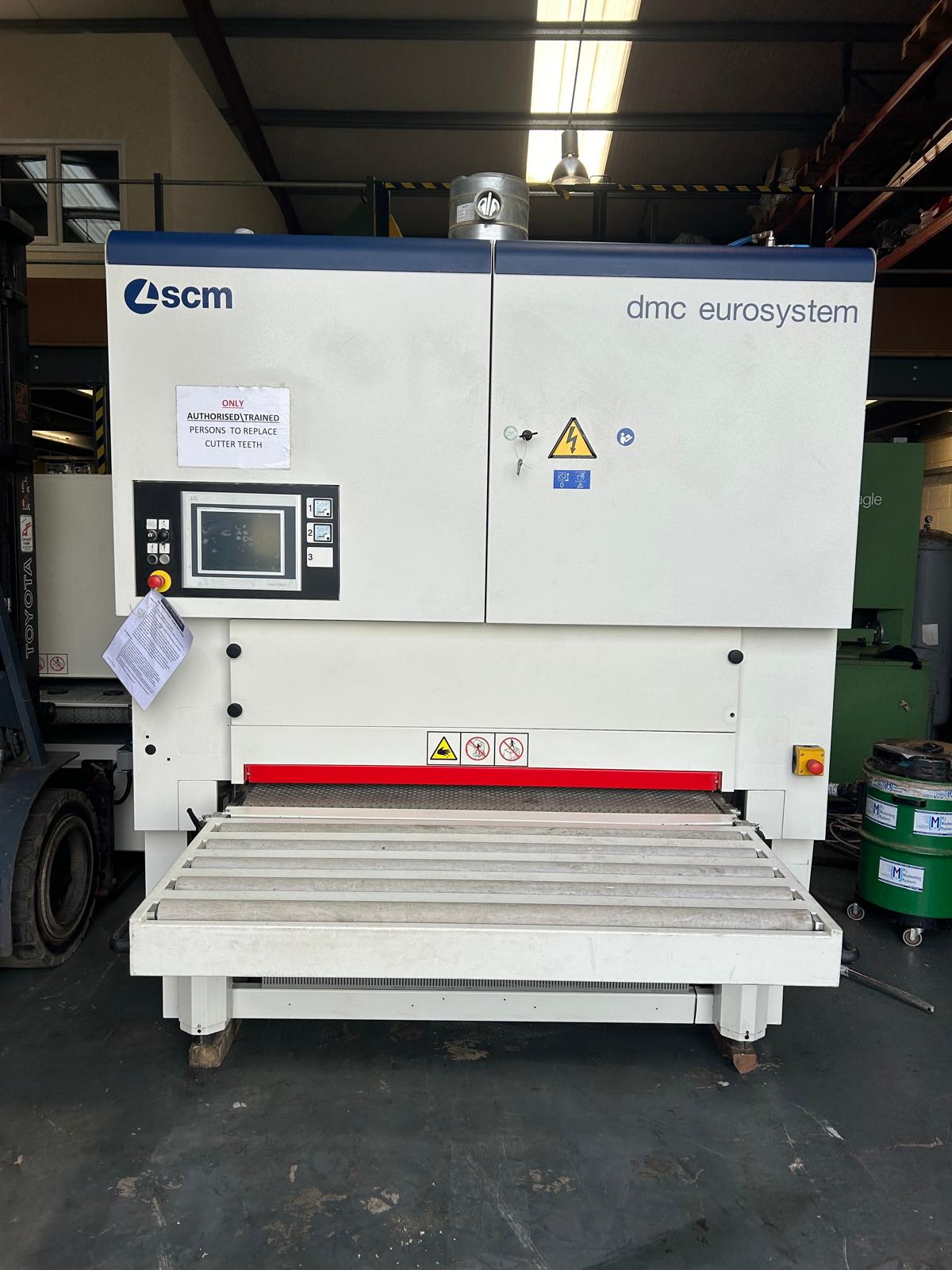

The wide belt sander DMC EUROSYSTEM by SCM for calibrating and sanding is flexible because of its modular design and many configurations.
NB. Specs may have discrepancies. Please contact for full specifications.
| Units | |
| R – calibrating / sanding roller unit |
- rollers diameter: 250 / 320 mm
- grooved-steel or rubber-coated
| K – combined unit roller / pad |
| T – crossbelt unit |
- can be installed both infeed and outfeeding the longitudinal units
- especially for “high gloss” painted panels
| S – superfinishing unit |
- with electronic sanding pad EPICS: uniform processing, chevron belt improves the cooling of the contact area
- longer belts improve the cooling of the abrasive grains
| C – planer unit |
- CHP planer unit for high stock removal rates (up to 3 mm) on solid wood
| B – brushing units |
- different brushing and structuring units
The most common configurations are: RK, RRS and TRRS
possible equipment
- quick release system
- digital read-out of the working height
- “Poli-V” belt with automatic tensioning system (silent transmission)
- centering system of the abrasive belt is managed by a “background suppression” photocell
- automatic feed belt centering system
- Software: Maestro Pro-Sand
Technical specifications (2017)
- working width: 1350 mm
- workpiece thickness
- mobile worktable: 3 – 170 mm
- fixed worktable: 3 – 200 mm
- longitudinal abrasive belt dimension: 1370 x 2620 mm
- abrasive crossbelt dimension: 150 x 5000 mm
- feed belt speed: 3 – 18 m/min
