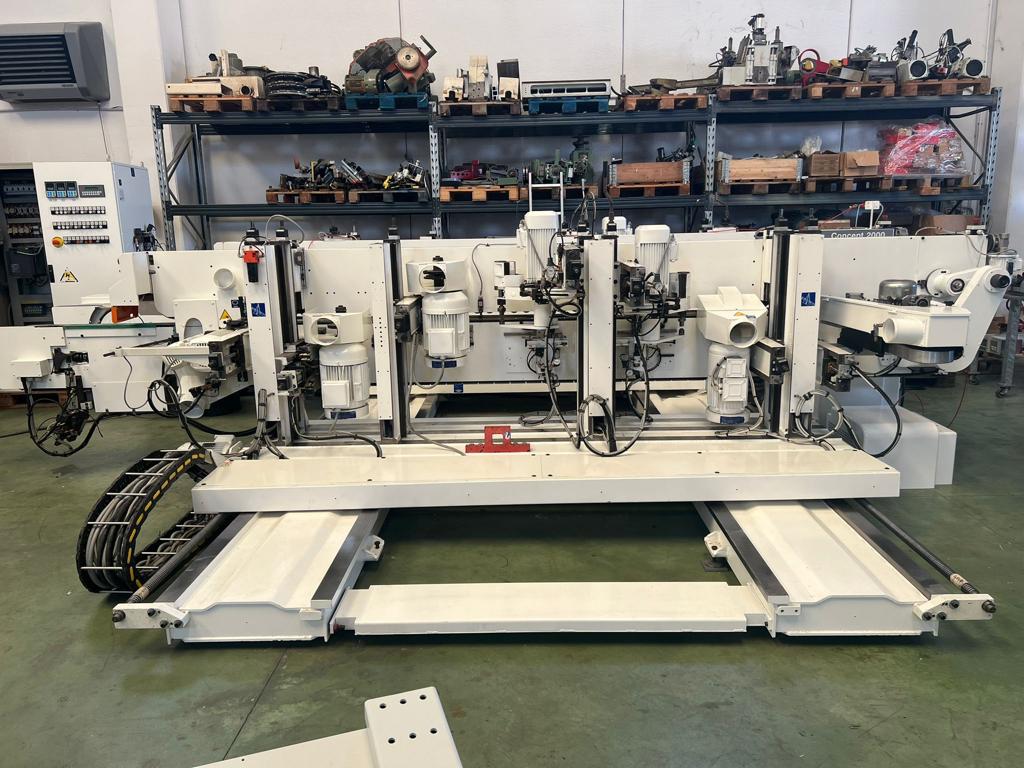

Description
Independent machine (standing alone) and/or Universal machine (First & Second in a line)
Electronic Programmer
Safety and sound-proof enclosure – OPTIONAL
No. 4+4 Vertical columns to support the working units
Min. useful working width (mm) 150 (ca.)
Max. useful working width (mm) 3100 (ca.)
Max. useful working thickness (mm) 180 (ca.)
Distance between center-axes of the disappearing dogs (mm) 500 (ca.)
Adjustable (min/max) feeding speed (m/min) 8-40 (ca.)
No. 8 Working groups (for each machine’s side):
1 Jumping Scoring Unit
1 Hogging Unit
1 Jumping Milling Unit
1 Milling-Shaping unit
1 Corners Rounding unit (contour trimming) with 2 vertical motors
1 Belt sanding unit (with abrasive disc)
1 Belt sanding units (with abrasive papers)
