Description

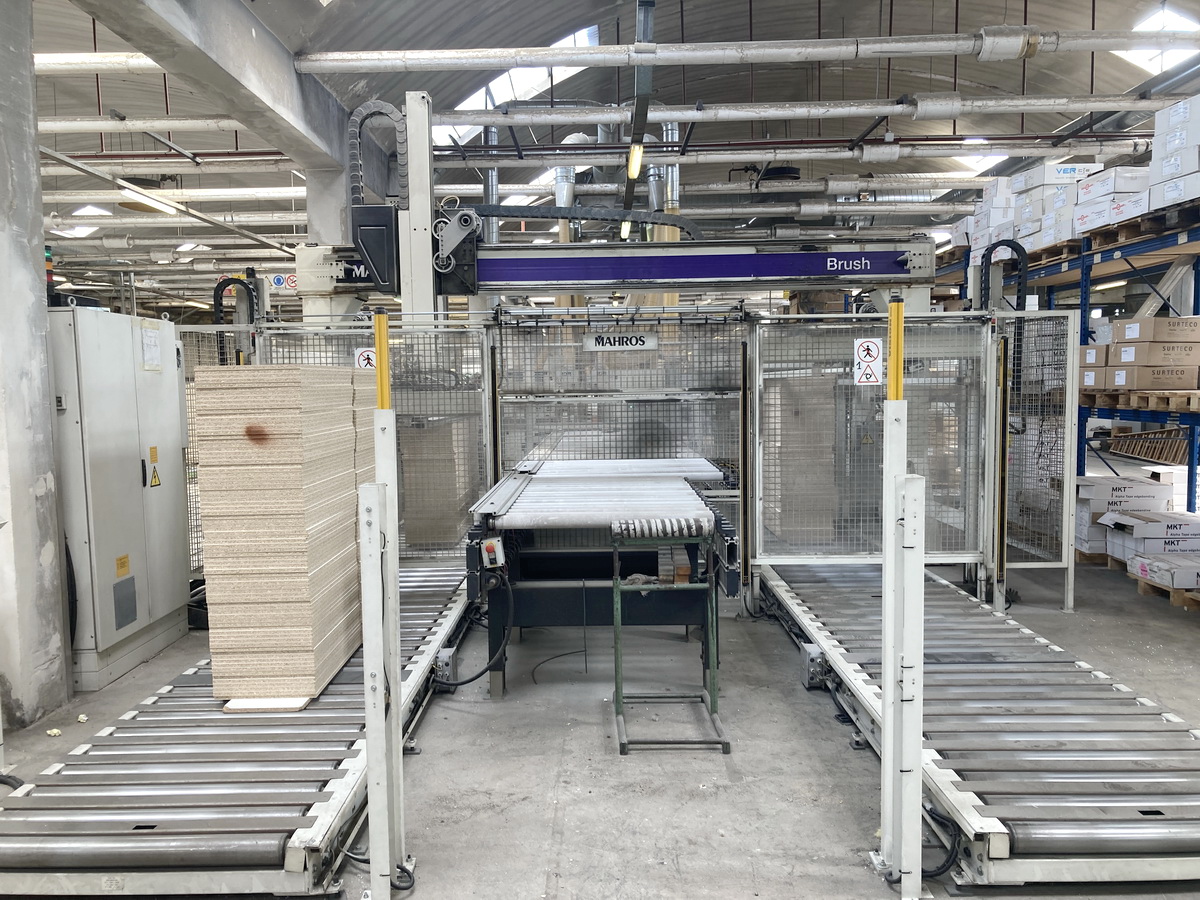

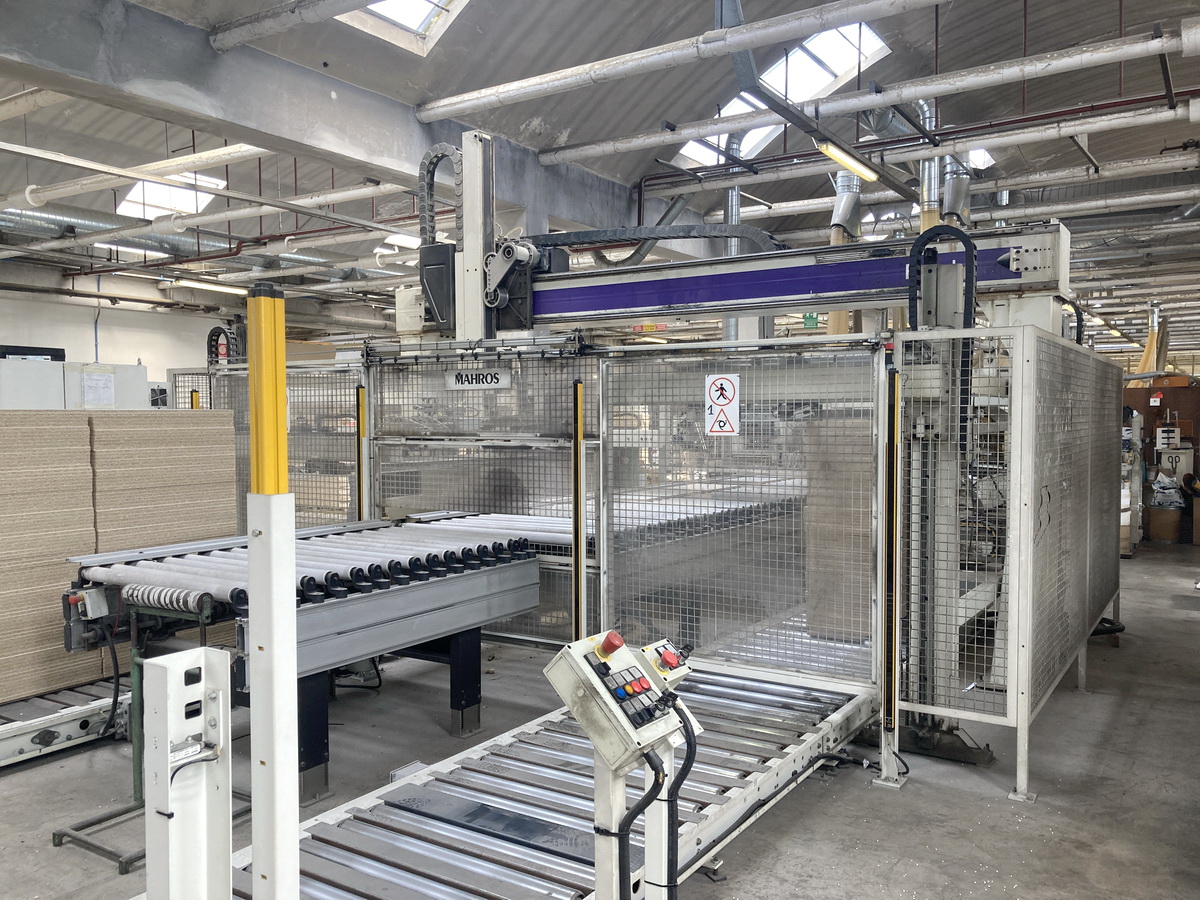

LOADER (BRIDGE-FRAME) WITH DOUBLE PICK-UP STATION
Gantry (Portal) machine, belonging to the line (SOFIT code: J10039)
Vacuum system (with its pump)
N. 2 Vertical supporting columns of the top supporting beam
N. 1 Horizontal top supporting beam (where the carriage slide on)
N. 1 Motorized sliding carriage with horizontal metal arms
N. 2 Horizontal metal arms with vacuum cups, adjustables
N. 2 Out-side rollers ways (on gound) to in-feed pile of panels to the Loader
N. 1 Out-side motorized rollers table (which in-feed the panels to the Unloader)
Separate electric and command panel
Electronic Programmer PLC MAGELIS
Perimetral safety metal grids
Working capacity (cycles/min) 10 (ca.)
Min/Max panels thickness mm 10 – 60 (ca.)
Min dimensions of the panels mm (ca.)
Max dimensions of the panels mm 1200 x 3200 (ca.)
Total installed motor power Kw
