Description

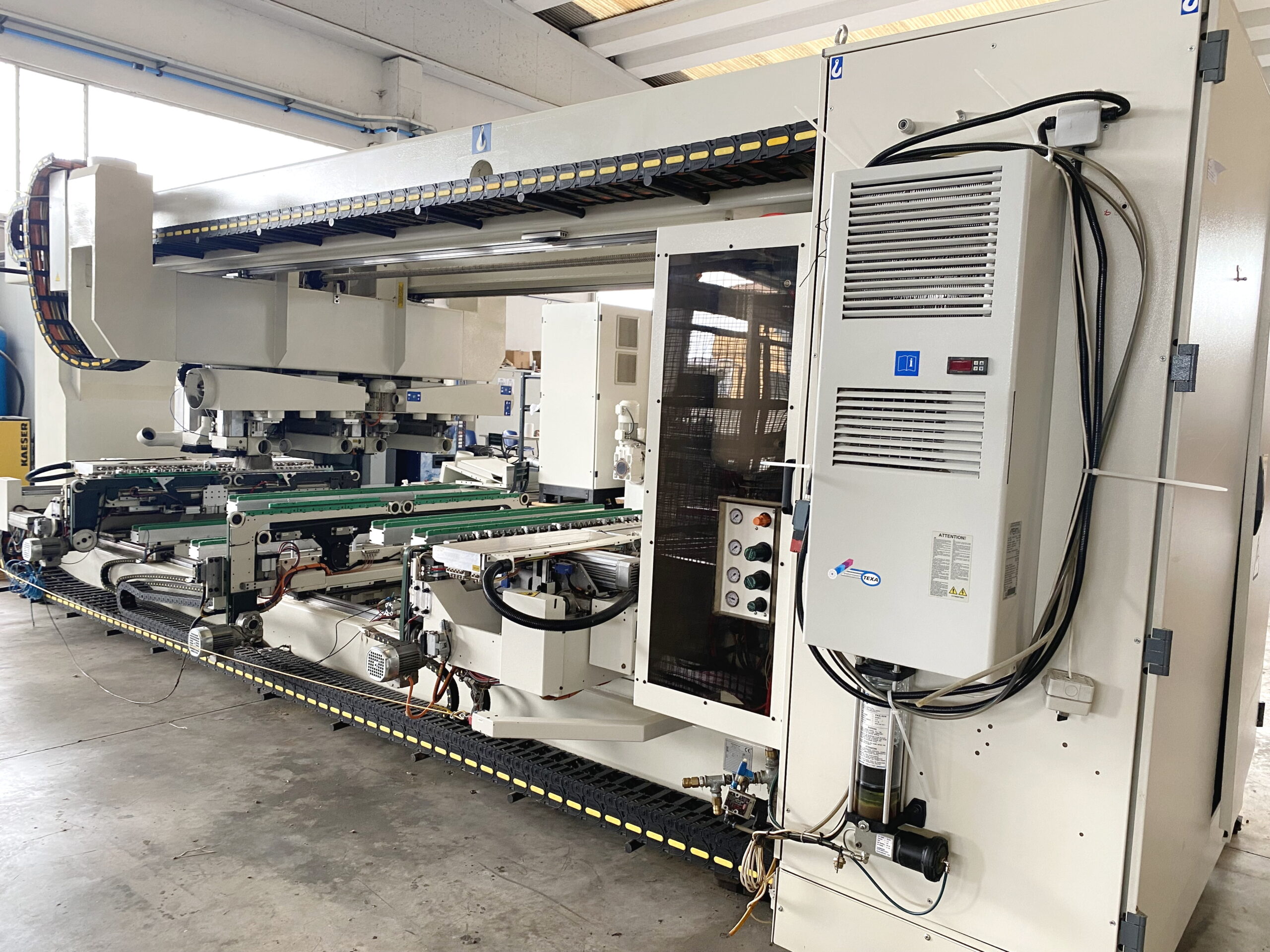

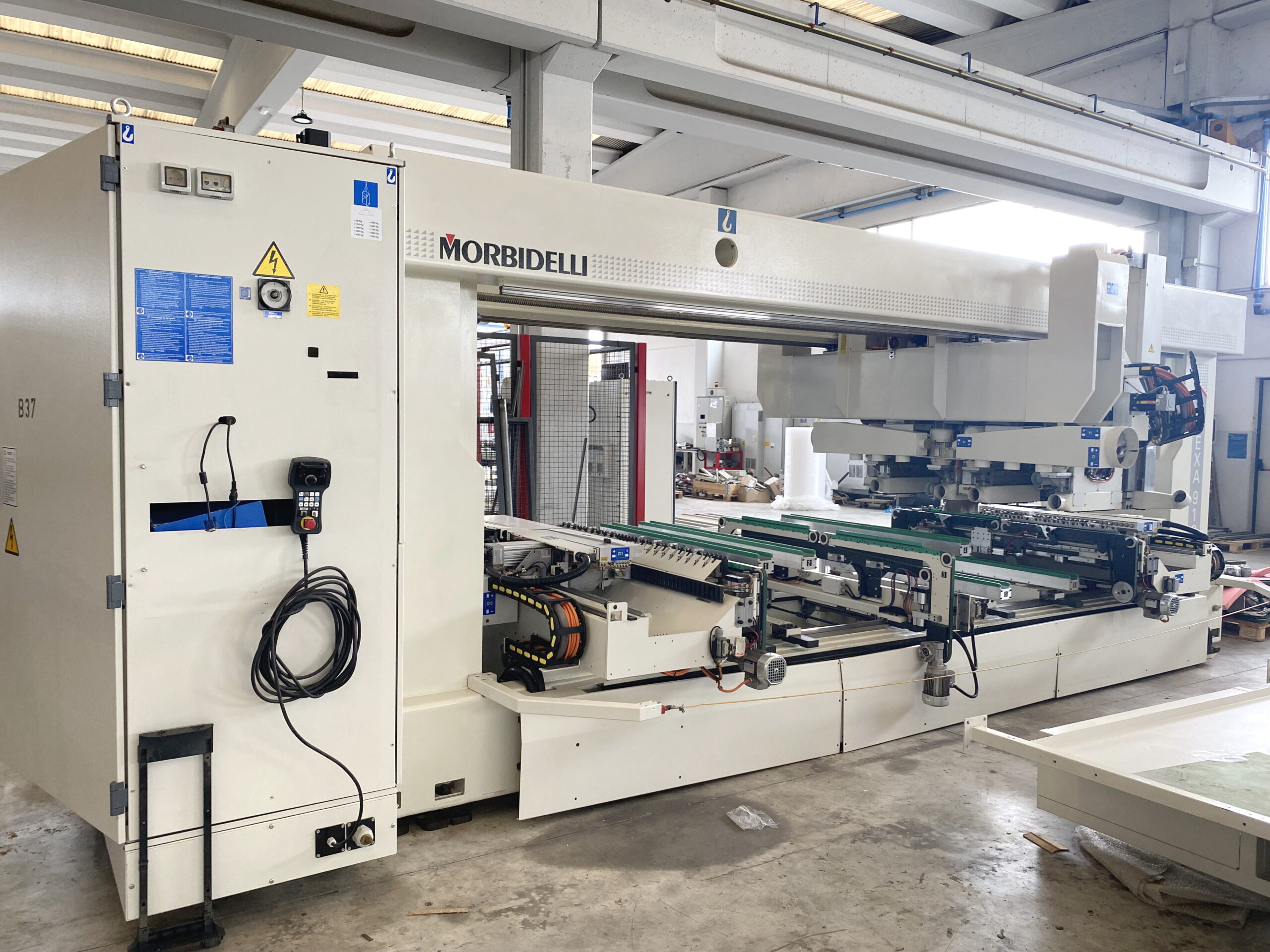

3-axes CNC-Gantry (portal) Flexible Automatic through-feed Boring and Routering Machine
Movable panel (workpiece), movable working head. Horizontal position of the panel (workpiece)
Numerical Control + Software. Overall integral safety cabin (enclusure) of the machine
Panels (workpieces) feeding by motorized belts – N° 3. Feeding speed max 120 m/min
N° 6 vertical supports, adjustable on the X-axis
Min. useful working area (X – Y – Z) mm 250 x 100 (150) x 12
Max. useful working area (X – Y – Z) mm 3000 x 1350 x 50
Two panels simultaneously processable (in Y axe) 2 x mm 650
Motorized carpet to evacuate chips and wastes
Separate electric and command cabinet. Total installed power (Kw) ??
WORKING GROUPS (TOP):
N° 2 Drilling heads with vertical spindles
Independent vertical boring spindles (No.) 2 x 21 = 42 (total in X) + 2 x 15 = 30 (total in Y)
N° 2 Drilling heads with horizontal spindles
Independent horizontal boring spindles N° 2+2 = 4 x 2 = 8 (total in Y)
Drilling head motor-power (Kw) 2 x Kw 1,5 (ca.)
N° 1 Vertical boring head for hinges (with 3 vertical spindles)
N° 2 Circular Saw (on X axis) diameter 125 mm (2 x Kw 2,2)
N° 2 Vertical electro-spindle (2 x Kw 6,6)
WORKING GROUPS (HORIZONTAL)
Drilling heads with horizontal spindles (No.) 2 LEFT + 2 RIGHT (total. 4)
Horizontal drilling spindles – Right side (No.) 21 x 2 (total 42)
Horizontal drilling spindles – Left side (No.) 21 x 2 (total 42)
